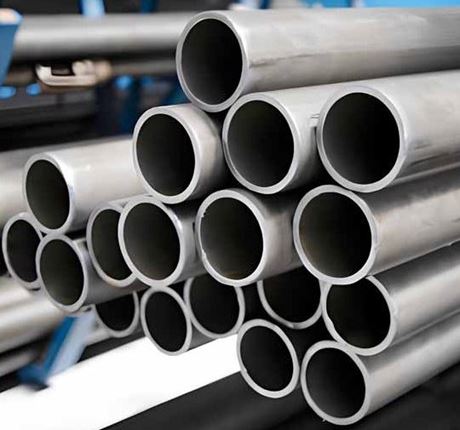

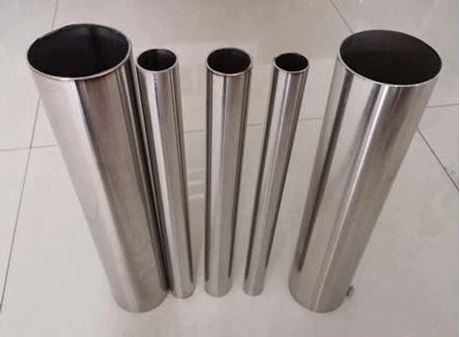

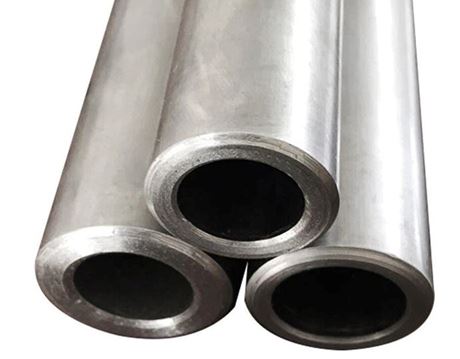

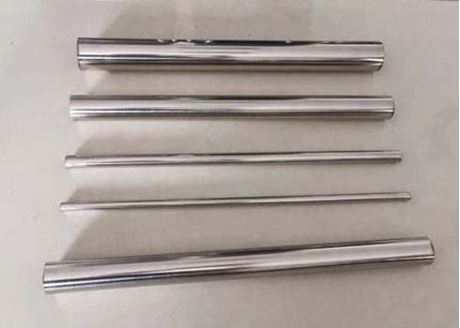

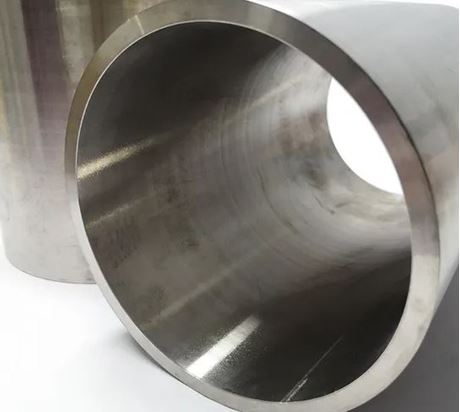

Nickel Alloy Products
Pressure Components: Fittings, flanges, and pipe systems
Structural Elements: Plates, bars, and billets
Specialty Shapes: Rings, custom forgings, and engineered parts
Mechanical Integrity: Optimized grain structure and directional strength
Corrosion Resistance: Alloy-specific passivation for harsh environments
Dimensional Precision: Tight tolerance machining (±0.5mm)
Regulatory Compliance: ASME, PED, and NACE MR0175 certification
1. Product Specification:
PRODUCT | SIZE RANGE |
Forged bar | φ80-450mm |
Forged round plate | D≤1200mm, H≤1400mm |
Round bar | φ4-450mm |
Pipe | T:1-50mm, OD:6-800mm |
Plate | T:0.5-80mm |
Module | Section Areas≤280000mm², W≤1000mm, Tk≥400mm |
Ring | D≤2000mm,H≥100mm |
Pipe fitting | Elbow, Tee, Reducer, Cross, Cap, Flange |
Othervarious shaped parts | As per the client's requirement |
2. Main Material Grades:
GRADE | UNS | DIN |
ALLOY400 | N04400 | W.Nr.2.4360 |
ALLOY K-500 | N05500 | W.Nr.2.4375 |
ALLOY 600 | N06600 | W.Nr.2.4816 |
ALLOY 601 | N06601 | W.Nr.2.4851 |
ALLOY 617 | N06617 | W.Nr.2.4663 |
ALLOY 625 | N06625 | W.Nr.2.4856 |
ALLOY 690 | N06690 | W.Nr.2.4642 |
ALLOY 718 | N07718 | W.Nr.2.4668 |
ALLOY X-750 | N07750 | W.Nr.2.4669 |
ALLOY A-286 | S66286 | W.Nr.1.4980 |
ALLOY 800 | N08800 | W.Nr.1.4876 |
ALLOY 800H | N08810 | W.Nr.1.4958 |
ALLOY 800HT | N08811 | W.Nr.1.4959 |
ALLOY 825 | N08825 | W.Nr2.4858 |
ALLOY 901 | N09901 | W.Nr.2.4662 |
ALLOY 925 | N09925 | |
ALLOY 926 | N08926 | W.Nr.1.4529 |
ALLOY75 | N06075 | W.Nr.2.4951 |
ALLOY80A | N07080 | W.Nr.2.4952 |
ALLOY90 | N07090 | W.Nr.2.4632 |
ALLOY105 | Alloy 105 | W.Nr.2.4634 |
ALLOY263 | N07263 | W.Nr.2.4650 |
ALLOY B | N1001 | |
ALLOY B-2 | N10665 | W.Nr.2.4617 |
ALLOY B-3 | N10675 | W.Nr.2.4600 |
ALLOY C | N10002 | |
ALLOY C-276 | N10276 | W.Nr.2.4819 |
ALLOY C-22 | N06022 | W.Nr.2.4602 |
ALLOY C-4 | N06455 |
ALLOYG-35 | N06035 | W.Nr.2.4643 |
ALLOYX | N06002 | |
ALLOYN | N10003 |
3. Special Smelting Equipment:
Equipment Type | Model | Capacity | Product Specifications (Diameter × Length/Weight) | Key Features |
Vacuum Induction Melting Furnace | VIM-VIDP 1000 | 6 tons | 80-580mm × 1000-4000mm | Dual crucible design, independent melting chamber, 0.07Pa vacuum, ceramic filtration system |
Vacuum Arc Remelting Furnace | VAR L660 P6 | 6 tons | 304-660mm × 1500-2700mm | H-type dual-station rotating structure, helium cooling, X-Y electrode adjustment, 0.08Pa vacuum, fully automated control |
Electro-Slag Remelting Furnace | ESR FB 830/14 | 18 tons | 360-820mm × 1000-4000mm | Coaxial conductive design, inert gas protection, automatic melting rate control, high-precision weighing system (0.125% accuracy) |
4. Refining Equipment & Features:
Equipment Type | Capacity | Key Features |
Double-Station IF Induction Furnace | 20-ton | Intermediate frequency heating, dual-station design for continuous production |
Purification Furnace | 20-ton | Deep deoxidation, desulfurization, and inclusion removal for ultra-clean steel |
LF (Ladle Furnace) | 20-ton | Temperature adjustment, alloying, and homogenization of molten steel |
VD/VOD Refining Furnace | 20-ton | Vacuum degassing (VD) or vacuum oxygen decarburization (VOD) for ultra-low carbon steel |
AOD Refining Furnace | 20-ton | Argon-oxygen decarburization for stainless steel and special alloys |
IF Induction Furnace | 3-ton | Small-batch melting, alloying, and temperature control for precision casting |
Molding Casting Line | 3 stations | Gas protection casting, mold preheating, and automated production |
5. Forging Equipment & Features:
Equipment Type | Capacity | Key Features |
Fast Forging Press | 25MN/8MN | High-speed forging for precision components, dual-capacity for flexibility |
Chamber Heating Furnace | 5 units | Uniform heating, energy-efficient, ideal for batch processing |
Trolley-Type Heating Furnace | 2 units | Large-load capacity, rapid temperature recovery for continuous production |
Heat Treatment Furnace | 5 units | Annealing, quenching, tempering, and stress relief for enhanced material properties |
Horizontal Lathe | - | Precision machining of large-diameter forged parts |
Vertical Lathe | - | Heavy-duty turning for tall or bulky components |
Gantry Milling Machine | - | High-rigidity milling for large workpieces |
Boring Machine | - | Deep-hole and precision boring for complex geometries |
Planer Band Saw Grinding Machine | - - - | Surface finishing for flat or contoured parts Efficient cutting of raw materials to size Fine surface finishing to tight tolerances |
6. Chemical Composition Test Equipment
Equipment | Brand/Origin | Key Features |
Direct Reading Spectrometer | American Thermoelectric | High-precision elemental analysis, rapid results |
ICP Spectrometer | American Thermoelectric | Multi-element detection, low detection limits |
Infrared Carbon & Sulfur Analyzer | American | Accurate measurement of C/S content in metals |
Oxygen & Nitrogen Analyzer | American | High-sensitivity detection of O/N in alloys |
Direct Reading Spectrometer | German | Advanced calibration, robust design |
X-Ray Fluorescence Spectrometer | German | Non-destructive analysis, wide material compatibility |
7. Mechanical Properties Test Equipment
Equipment | Key Features |
Electronic Universal Testing Machine | Tensile/compression/flexure testing |
High-Temperature Creep Tester | Long-term deformation analysis under heat |
High-Temperature Endurance Tester | Cyclic load testing in extreme conditions |
Metal Pendulum Impact Tester | Charpy/V-notch impact resistance |
Brinell Hardness Tester | Macro-hardness measurement |
Rockwell Hardness Tester | Precision surface hardness testing |
8. Metallographic & NDT Equipment
Equipment | Key Features |
Upright Metallurgical Microscope (Zeiss) | High-resolution microstructure analysis |
Inverted Metallographic Microscope | Reflective/transmitted light imaging |
Ultrasonic Flaw Detector | Internal defect detection |
Vacuum Non-Consumable Arc Melting Furnace | High-purity alloy production |
