| Place of Origin | Hunan, China (Mainland) | Brand Name | ADTO | Model Number | Medium Voltage |
| Insulation Material | XLPE | Type | Medium Voltage | Application | Industrial |
| Conductor Material | AL/CU | Jacket | PVC | Certificate | CE SGS |
| Standard | GB/T12706 | Max Temperature | 90℃ | Product name | XLPE Insulated |
Laying outside, the cable can bear some traction, but mechanic force is not permitted, and single-core cable shall not be placed in the magnent tubes:
1. Conductor's Max. long-time working temperature is at 90℃;
2. Conductor's short-circurit temperature≤250℃, and it lasts≤5S;
3. Permitted bending radius: single conductor>20D; multicore>15D[D refers to the Overall Diametre(Outer Diameter) of the cable]
4. When the cable laying temperature is lower than 0℃, the cable shall be pre-heated;
5. The cable laying is not subjected to the drop height.
We offer different finishes of PPGI to satisfy all your needs. Let us know if you require a product or service that you do not see listed here. We gladly to offer custom-manufactured service for your convenience.

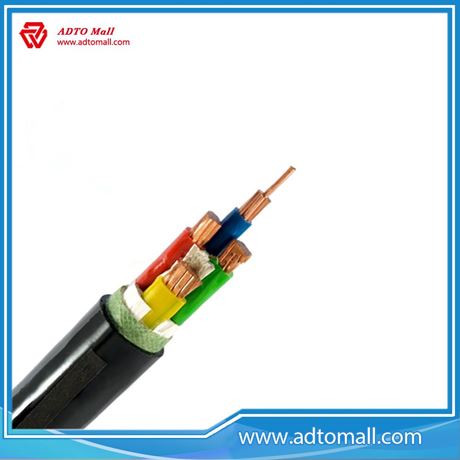

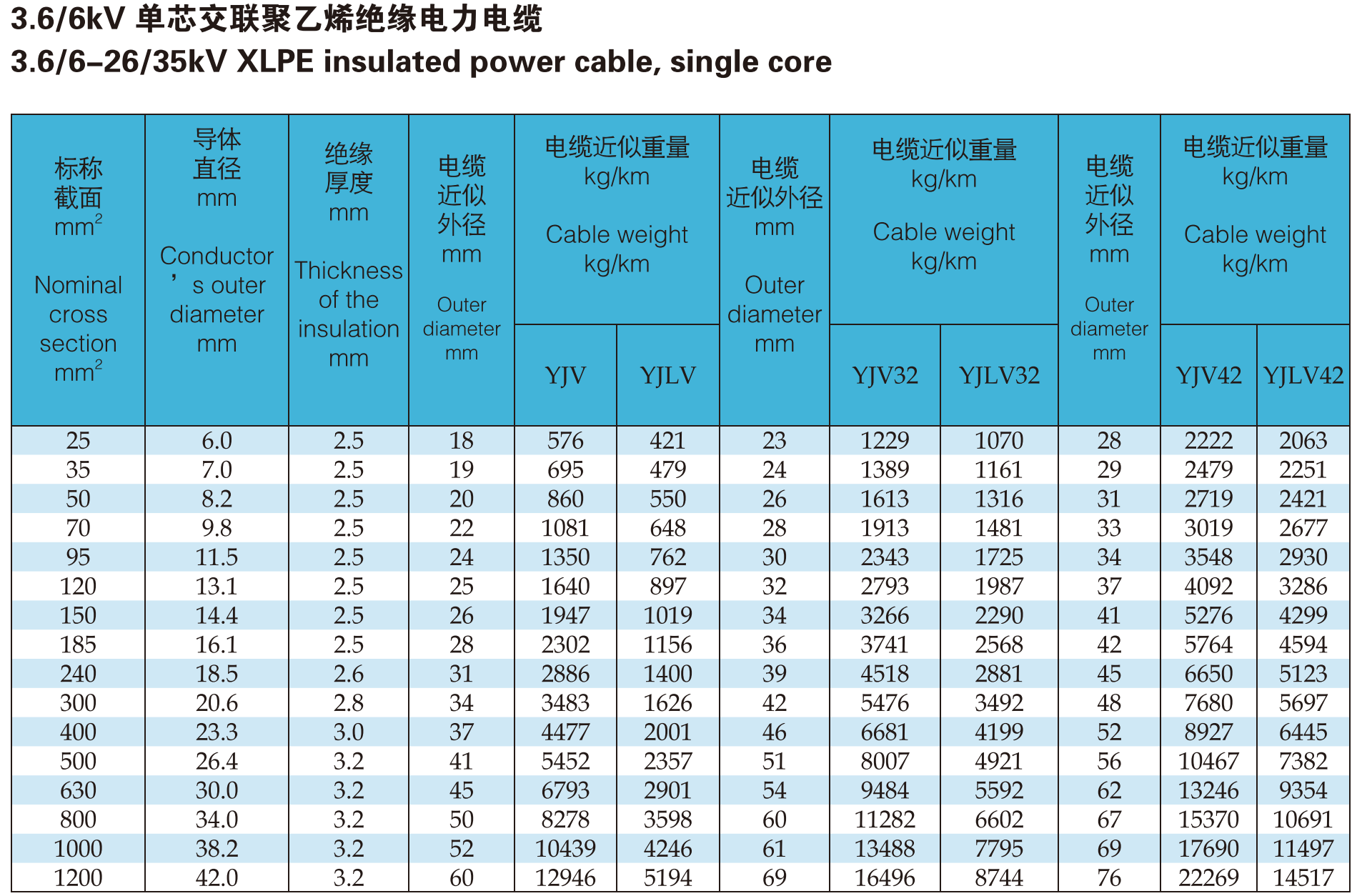

3.6/6-26/35 KV cross-linked power cable is produced bide by the State Standard GB/T12706-2008, equally the IEC 60502-2005. The cable cab be applied to the power transmission lines with the rated voltage 35KV and lower. It is used for house, tunnel, trench and direct bury, besides, it is also able to bear some external mechnical force or equivalent pulling force.
In carton box, wooden reel, 305m/box, 200m/coil, 300m/500m/drum;
Inter packing: wooden reel, plastic reel or paper reel;
Outer packing: carton box, pull out box.
Shipping: by shipment, by air, or by express, according to client’s request.
ADTO Industrial Group, Co., Limited, founded in 1998, ADTO is a leading building material supplier and manufacture in China, centering on R&D, producing and selling of building material of scaffolding, aluminum formwork, fastener and coupler, integrates business of steel, logistic and wire & cables service. The group has more than 10 subdivisions and four manufacturing bases, possessing the right to import and export with business coverages spanning over more than 50 places and areas. Over 5000 international big buyers keep ADTO as their long term business partner.
1. Experience: Founded in 1998, more than 17 years in construction materials manufacturing
2. Product Idea: Quality decided to safety, safety is the hard truth.
3. Certifications: ISO, CE, SGS, BV
4. Production base: Four factories, more than 400,000 square meters
5. OEM or Customized Service is available.
Person: Ms Zheng
Email: Info@adtomall.com
Tel: 86-731-89925505
Skype: ADTOMall
Address: HuNan,China
More detail, welcome to send inquiry.
