Color Coated Corrugated Roofing Sheet

FOB Price : US $680.00 ~730.00 /Metric Ton
Min.Order Quantity : 25 Metric Ton/Metric Tons
Supply Ability : 5000 Ton/Tons Per Month
Loading Port : Tianjin, Shanghai, Ningbo
Payment Terms : L/C,T/T

Live Chat

Product quality protectionOn-time shipment protectionPayment protection

Total Cost:The total price will depend on the final product features you select

Product Categories

Scaffolding
Tubular Scaffolding
Ringlock Scaffolding
Kwikstage Scaffolding
Cuplock Scaffolding
Frame Scaffolding
Scaffolding Tube
Scaffolding Planks
Scaffolding Coupler
Scaffolding Ladder
Scaffolding Screw Jack
Acrow Props
Ladder Beam
Scaffolding Accessories
American Style Scaffolding
More Scaffolding
Steel Prop Scaffold Clamps Kwikstage System Ringlock Scaffold System Base Jack Frame Scaffold System Screw Jack
American Scaffolding
Ringlock System Cuplock System Frame System Scaffold Deck Shoring Prop Tube & Clamp Multi-function Scaffold
Formwork
Aluminium Formwork
Frame Formwork
Steel Formwork
Plastic Formwork
Film Faced Plywood
PVC Foam Board
Formwork Accessories
Aluminum Formwork Accessories
Steel Pipe
Galvanized Steel Pipe
Pre Galvanized Steel Pipe
Square Steel Tubing
Rectangular Steel Tubing
Seamless Steel Pipe
ERW Steel Pipe
LSAW Steel Pipe
SSAW Steel Pipe
Pipe Fittings & Flanges
Stainless Steel Pipe
Stainless Steel Welded Pipe Stainless Steel Seamless Pipe
More Steel Tube
Pre Galvanized Steel Tube Square Steel Pipe Rectangular Steel Pipe ERW Steel Tube LSAW Steel Tube SSAW Steel Tube
Aluminum Products Series
Aluminium Ladder
Straight Ladder Extension Ladder Multi-Purpose Ladder Telescopic Ladder Household Step Ladder Ladder Accessories Work Platform Aluminum Stairs Step Stool Ladder Fiberglass Ladder
Aluminum Beam
Aluminium Windows
Aluminium Doors
Aluminium Profile
Aluminum Coil
Aluminium Sheet
Aluminum Foil
Aluminium Foil Stock
Steel Coil
Galvanized Steel Coil
Galvalume Steel Coil
PPGI Steel Coil
PPGL Steel Coil
Cold Rolled Steel Coil
Roll Forming Machine
Hardware
Hex Bolts
Guardrail Bolts
Structural Bolts
Anchor Bolts
Special Bolts
Iron Wire
Hex Nuts
Screw
Special Nuts
Common Nails
Roofing Nails
Eye Bolts
Flange Nuts
Wood Screws
Drywall Screws
Wing Nuts
Flat Washers
Spring Washers
Steel structure bolts
Steel Structure
Prefab Warehouse & Workshop
Aircraft Hangar
Fire Escape Stairs
Highway Guardrail
Steel Floor Decking
Steel Grating
H Beam
C/Z Purlin
Steel Profiles
Ceiling Channel
Ceiling Channel For Southeast Asia Ceiling Channel For Middle East Ceiling Channel For Europe
Metal Drywall Studs
Gypsum Board
Phone Booth
Office Phone Booth
Safety Netting
Debris Netting
Shade Netting
PVC Fireproof Mesh Sheet
Soundproof Cloth
More Categories
Rebar Splicing Systems
Rebar Coupler Threading Machine Rebar Accessories
Personal Protective Equipment
Safety Helmets Protective Glasses Protective Mask Safety Gloves Safety Clothes Safety Shoes Fall Arrest Harness
Power Cable
Low Voltage Cable Medium Voltage Cable High Voltage Cable ACSR Cable
Tiles & Sanitary Wares
Ceramic Tiles Sanitary Wares
Road Cleaning Machinery
Environmental Sanitation Equipment
Roll Off Dumpster Garbage Transfer Equipment Sweeper Truck

Advantage of corrugated roofing sheet:

1) Easy installation and cut

2) High strength and long span

3) Low in costs

4) Durable 15-20years

5) Nice appearance

6) Anti-rust



Technical parameters:

Thickness: 0.12mm-0.8mm,Thickness tolerance:±0.02mm

Width: 600mm-1250mm,Width tolerance:-0/+3mm

Weight of each package: about 3 mt

Depth of corrugated: from 15mm to 18mm

Pitch: from 75mm to 78mm

Length: according to request

Surface treatment: chromate, oil/unoil, bright finish, spangle,

Colors: refer to RAL numbers or customer sample,common colors are sea blue, white grey and bright red

Corrugated Sheet Raw Materials: Galvanized steel, Aluzinc Steel, Aluzinc Pre-painted sheet and Aluminium sheet.

Surface Coating: top coating:17-25um;back coating :5-7 um

Gloss: The gloss can changeable by Customers' Request.we can also do some High gloss.

Paint type: PE or PVDF

Standard: GB/T 12754-2006;ASTM A 755;EN 10169;JIS G 3312;AISI;BS;DIN

Grade: CGCC/SGCC/SGCH/SPCC

Application: various roofs or walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums etc.

Product Images



PPGI Steel Coil





Specifications



We offer different finishes of GI to satisfy all your needs. Let us know if you require a product or service that you do not see listed here. We gladly to offer custom-manufactured service for your convenience.

PPGI Steel Coil

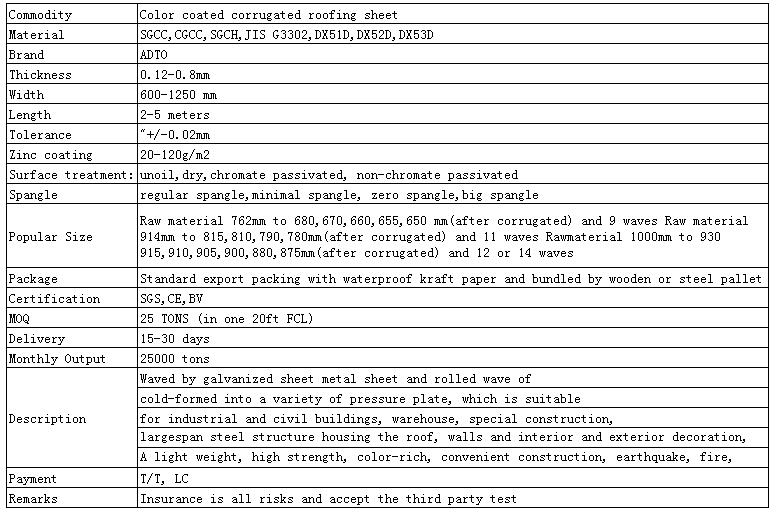

  Roofing sheet specifications

Production Process



Galvanized Steel Sheets and slit coils are also offered as per customer requirement

The grade AGIS usually supply is ASTM A 653 in lock forming quality, JIS G3302 SGCC, Structural Grade 50 in regular spangle, cromated, non-skinpassed, unoiled/dry

Size:  thickness from 0.28 mm to 2.50 in width 1000/1219 or 1250 and slit coils

Zinc Coating:  Z90 up to Z350 gm/m2

We supply GI Sheets in width 1000/1219 and 1250 and length maximum 6000 mm along with cut to length.

We supply minimum/regular spangle coils from our overseas mills and regular spangle coils thicknesses 2.8 mm and up to 4.0 mm.



PPGI Steel Coil Production Process



Production Equipment



PPGI Steel Coil





Applications



PPGI Steel Coil



Packing and Shipping



PPGI Steel Coil

Company Information



1. Experience: Founded in 1998, more than 17 years in construction materials manufacturing

2. Product Idea: Quality decided to safety, safety is the hard truth.

3. Certifications: ISO, CE, SGS, BV

4. Production base: Four factories, more than 400,000 square meters

5. OEM or Customized Service is available.



Contact Us

Person: Ms Zheng

Email: Info@adtomall.com

Tel: 86-731-89925505

Skype: ADTOMall

Address: HuNan,China

 PPGI Steel Coil
