  • This type of glazed tile roll forming machine has high production efficiency, low noise, low power consumption advantages.
  •  It's also have the advantage of easy to operate, maintain, debug and replace mold.



Technical Parameter of Equipment



Model No:

ADTO-GT840

Application

Production Capacity

8-12m/min



Roofing panel



Main motor power:

4 kw

Pump power

4 kw

Voltage

380 V 50Hz 3phases

Effective Width(mm)

840

Coil Width(mm)

1200 as you required

Dimension(L*W*H):

About 6500 *1500*1500mm

Weight:

About 3.5T

Thickness of the plate

0.3-0.8mm adjustable

Roller material:

45#steel Chrome Plated

Cutting blade material

Cr 12 high grade steel

Diameter of Shaft

75mm

Mode of transmission

Chain

Roll station

12 row Adjustable

Medium plate thickness

12 mm

Control system

PLC computer control system

Certification:

 CE/BV/ISO



Roll Forming Machine The equipment model can be designed and manufactured according to customers' requirement of specification and drawing.



Product Images



floor-deck-roll-forming-machine-product-equipment



Production Process



glazed-title-roll-forming-machine-product-process

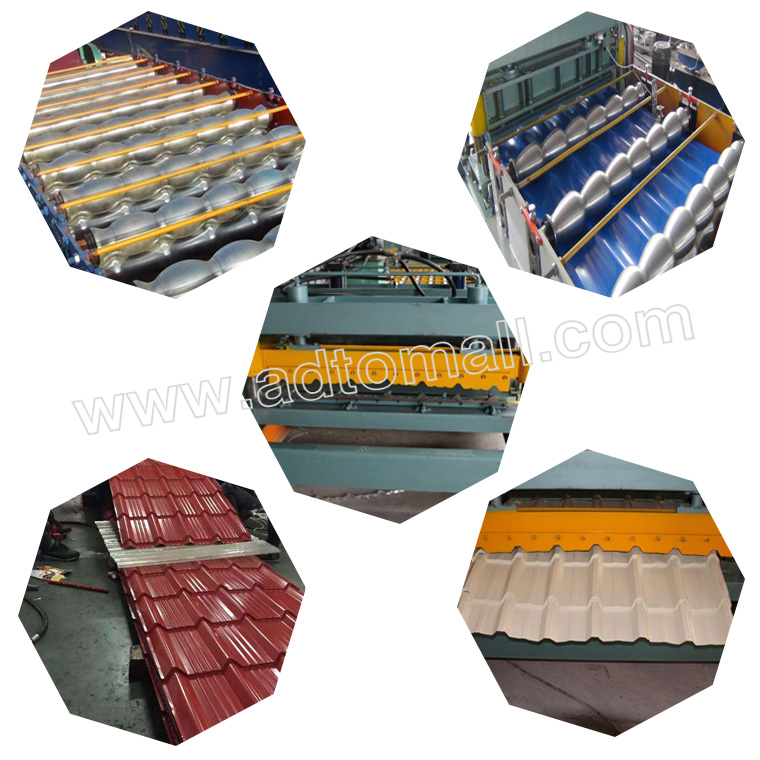

Production Equipment
